Brand Name : HRB
Certification : ISO, SGS, ROHS
Place of Origin : china
MOQ : 1pcs
Price : 1usd-2usd
Payment Terms : T/T
Supply Ability : 1kk
Delivery Time : 21-28 days
Type : VA
Screen size : 64(W)*41(H)*9(D) mm
Drive IC : HT1621
View Area : 40.5 * 20.1mm
LCD parameter : duty1/4 bias1/3
Display mode : TN HTN positive transmissive
Screen size | 64(W)*41(H)*9(D) mm |
Module Size | 76(W)x58(H)x19.7(D) mm |
Screen segment | Segment Custom LCD |
Control/drive IC | HT1621 |
Display color/BL LED | WHITE /BLUE/ RED /YELLOW /GREEN /RGB FULL COLLOR |
Viewing Angle | 6 O' clock LCD LED SCREEN |
Display mode | TN HTN positive transmissive |
LCD parameter | duty1/4 bias1/3 |
LCD parameter | BL I=30MA |
LCD parameter | VOP=4.2V |
Operating Temperature | -10~+60℃ |
View Area | 40.5 * 20.1mm |
,
![]() |

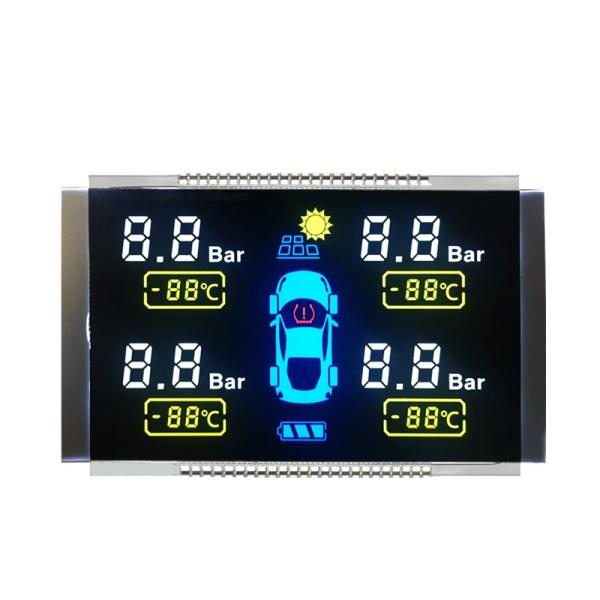

Black Background 7 Segment Lcd Module For Tire Pressure Monitoring Images |
