high brightness cog 128X64 lcd
high brightness cog 128X64 lcd
| Main Parameters |
| Item |
high brightness cog 128X64 lcd |
| Color |
dark blue words over yellow and green background |
| Pixel |
8192 |
| Resolution |
128*64 |
| Contrast Ratio |
200:1 |
| Brightness |
white BL |
| Outline Dimension |
51.70(W)X36.20(H)X4.00(T)mm |
| Viewing Area |
47.10(W)X 26.50(H)mm |
| Active Area |
44.78(W)X 22.36(H)mm |
| Resolution |
128*64 |
| Dots |
128*64 |
| Pitch |
0.51mm |
| Drive Power Supply Voltage |
3.0V/3.3V |
| Viewing Angle |
6.00 o'clock |
| Operation Temperature |
-20°C ~ +70°C |
| Storage Temperature |
-30°C~ +80°C |
| Display Mode |
STN, positive, dark blue words over yellow and green background |
| FPC Lenght |
30.00mm |
| Response Time |
100ms |
| IC |
ST7565R |
| IC Packaging |
COG |
According to customers' various requests,tft lcd, lcd panel, lcd monitor, lcd screen, FSTN and STN lcd display, industrial lcd, we can match all accessories which inclusive of driver board,LED backlight & LVDS cables.
| Main Application |
| Telecommunication Devices |
Telephone, Interphone, watch, radio, etc. |
| Home Appliances |
Washing Machine, Refrigerator, Home Integrator |
| Industrial Control |
Homotaxial Numerically-controlled machine tool |
| Instrument and Apparatus |
Tester, Medical instruments |
| Vehical-mounted Digital |
MP3, MP4 and vehical-mounted air conditioner |
| Mining |
Mine's lamp charger, gas tester |
| Marine |
Salinity tester |
ODM is accepted.
Various LCD Display Mode Available
Various Backlight Color Available
Various Temperature Range Available
Product Range
1) TN, STN, FSTN LCD panels / modules
2) Customized LCD panels / modules
3) Small(1.5 inch-7 inch)TFT LCD
FAQ
Q: Are you a factory or trading company?
A: We are a OEM/ODM factory.
Q: What is the MOQ?
A: Generally if you choose the different products, our minimum order qty also will be different.
Q: What about the production time?
A: The LCD products need 5-6 weeks to be made after receive deposit.
Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.
Q:Do you give any discount ?
A: I'll surely try my best to help you get those by the best price and good service at the same time.
Product Tags:
|
|

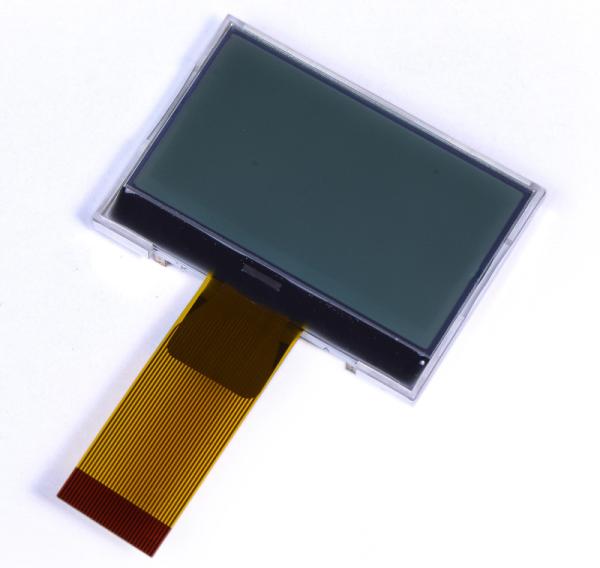

Cog 128x64 Dot Matrix Lcd Display High Brightness With 0.51mm Pitch Images
|
